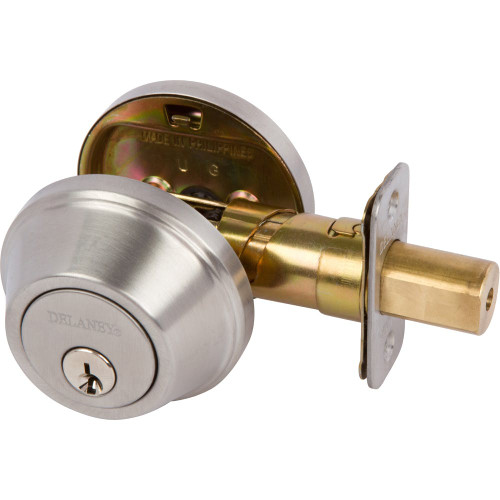

Single Cylinder Keyed Deadbolt with Solid Brass Cylinder
The single cylinder deadbolt function holds the door secure until the latch is thrown from the inside or a key is used from the outside.
Features:
- Combination screws for wood or metal door mounting
- Works well for functional décor
Specifications:
- Backset: Fits 2-3/8" and 2-3/4"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Faceplate: 1" x 2.25" Round Corner
- Door Thickness: Standard from 1-3/8" to 1-3/4"
- Cylinder: 5 Pin KW1 (standard)
- Function: Single Cylinder
- Latch: 1" throw
- Strike: 2-1/4" full lip round corner
Technical Specification Download
