Features:
- Meets BHMA security grade 3 requirements
- Constructed of high-quality zinc for durability
- Specify handing with selection above
- Designed for an easy one-person installation
- Comes standard with a round corner latch faceplate and 1/2" throw
- Includes a limited lifetime warranty on mechanical parts and a five year warranty on finish
Specifications:
- Backset: Adjustable 2-3/8" or 2-3/4"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Door Thickness: 1-3/8" to 1-3/4"
- Handing: Left or Right
- Projection: 2-7/16"
- Center to Center: 5"
- Grip Center to Center: 8-1/2"
- Latch Faceplate: Round Corner
- Cylinder: 5 Pin KW1
- Concealed Screws: No
- Material: Zinc
Technical Specification Download- Category:
- Entrance Hardware
- Sub-Category:
- Entrance Handlesets
- Product Group:
- Callan Entrance Handlesets
- Model:

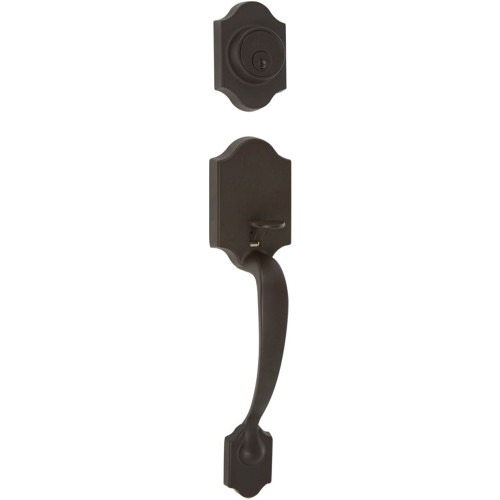

- Chatham
- Function:
- Single Cylinder
- Function Description:
- Handleset with single cylinder deadbolt.
- Grade:
- Grade 3
- Finish:
- Oil-Rubbed Bronze (US10B)
- Knob/Lever:
- Selectable
- Trim:
- Round Rosette
- Knob/Lever Style:
- Selectable
- Keyed:
- Yes
- Cylinder:
- KW1 5-Pin
- Backset:
- 2-3/8" and 2-3/4"
- Deadbolt Cross Bore:
- 2-1/8"
- Handleset Cross Bore:
- 2-1/8"
- Edge Bore:
- 1"
- Mounting (center to center):
- 5-1/2"
- Door Thickness:
- 1-3/8" to 1-3/4"
- Latch Faceplate:
- 1" x 2-1/4"
- Handle Latch:
- Spring Latch 2-3/8" and 2-3/4" (9074)
- Handle Latch Throw:
- 1/2"
- Handle Strike:
- 2-1/4" Full lip round corner (9103)
- Deadbolt:
- 2-3/8" and 2-3/4" adjustable (9092)
- Deadbolt Throw:
- 1"
- Deadbolt Strike:
- 2-1/4" Rd & Sq corner (9113 & 9117)
- Door Handing:
- Required for interior levers
- Fasteners:
- Combination wood and metal screws
- Case Quantity:
- 10 Pcs
- Case Weight:
- 33 Lbs.
