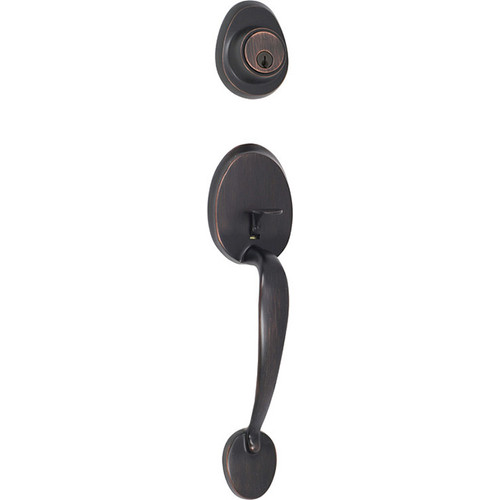

An inviting home starts at the front door. The smooth curves of the Tralee handle set provide the modern or traditional look for both designers and residential homeowners. Easy to install and available in multiple finishes/colors. An active handle set has key access from the exterior and a turn button on the inside. A dummy handle set has no cylinder and typically mounts to a set of doors for aesthetics. A double cylinder handset locks and unlocks with a key only (check for code in your given area).
- Replaces front door hardware with 5-1/2 in. spacing between top and bottom center door holes
- Adjustable latch (2-3/8 in. or 2-3/4 in.)
- Easy installation with just a screwdriver
- Multiple colors available
- Lifetime mechanical warranty
- Can be rekeyed to match your existing hardware
- All products with a key on the same order will be keyed alike
Technical Specification Download- Category:
- Entrance Hardware
- Sub-Category:
- Entrance Handlesets
- Product Group:
- Delaney Entrance Handlesets
- Model:
- Tralee
- Function:
- Dummy Trim
- Function Description:
- Handleset with non-functional cylinder.
- Grade:
- Grade 3
- Finish:
- Satin Nickel (US15)
- Knob/Lever:
- Selectable
- Trim:
- Selectable
- Knob/Lever Style:
- Selectable
- Keyed:
- No
- Cylinder:
- Not Applicable
- Backset:
- 2-3/8" and 2-3/4"
- Deadbolt Cross Bore:
- 2-1/8"
- Handleset Cross Bore:
- 2-1/8"
- Edge Bore:
- 1"
- Mounting (center to center):
- 5-1/2"
- Door Thickness:
- 1-3/8" to 1-3/4"
- Latch Faceplate:
- 1" x 2-1/4"
- Handle Latch:
- 2-3/8" and 2-3/4" adjustable (9074)
- Handle Latch Throw:
- 1/2"
- Handle Strike:
- 2-1/4" Full lip round corner (9103)
- Deadbolt:
- 2-3/8" and 2-3/4" adjustable (9092)
- Deadbolt Throw:
- 1"
- Deadbolt Strike:
- 1-1/8" x 2-3/4" Rd & Sq corner (9111 & 9117)
- Door Handing:
- Required for interior levers
- Fasteners:
- Combination wood and metal screws and 3" security screws
- Case Quantity:
- 10 Pcs
- Case Weight:
- 33 Lbs.
