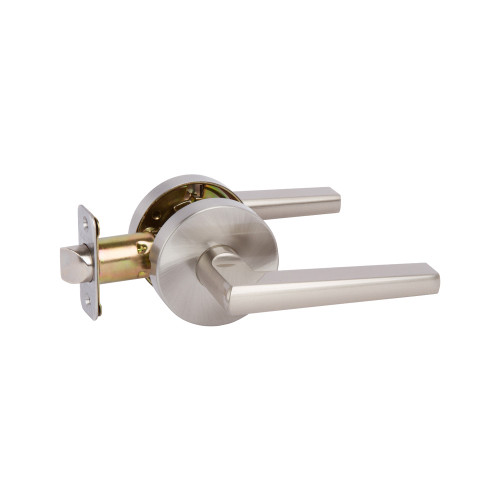

Passage: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn't needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.
Features:
- BHMA grade 3 certified security
- Constructed of high quality materials for lasting durability
- Installs easily with all necessary mounting hardware included
- Covered by a limited lifetime warranty
Specifications:
- Backset: Adjustable 2-3/8" or 2-3/4"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Door Thickness: 1-3/8" to 1-3/4"
- Handing: Reversible Left or Right
- Handle Length: 3-7/8"
- Handle Projection: 1-7/8"
- Trim Height: 2-9/16"
- Trim Width: 2-9/16"
- Product Weight: 2.5 lb.
- Latch Faceplate: Round Corner
Technical Specification Download- Category:
- Knob and Lever Locks
- Sub-Category:
- Leversets
- Product Group:
- Grade 3 Leversets
- Model:
- Vida
- Function:
- Passage
- Function Description:
- Latch bolt operated from either side at all times.
- Grade:
- Grade 3
- Finish:
- Selectable
- Knob/Lever:
- Lever
- Trim:
- Round Trim
- Knob/Lever Style:
- Vida Lever
- Keyed:
- No
- Cylinder:
- Not Applicable
- Backset:
- 2-3/8" and 2-3/4"
- Cross Bore:
- 2-1/8"
- Edge Bore:
- 1"
- Latch Face:
- 1" x 2-1/4"
- Door Thickness:
- 1-3/8" to 1-3/4"
- Latch:
- 2-3/8" and 2-3/4" 6-way adjustable (9074)
- Latchbolt Throw:
- 1/2"
- Strike:
- 1-3/4" x 2-1/4" full lip round corner (9103)
- Faceplate:
- 1" x 2-1/4" Round Corner
- Door Handing:
- Non-Handed
- Fasteners:
- Combination wood/metal screws.
- Case Quantity:
- -
- Case Weight:
- -
