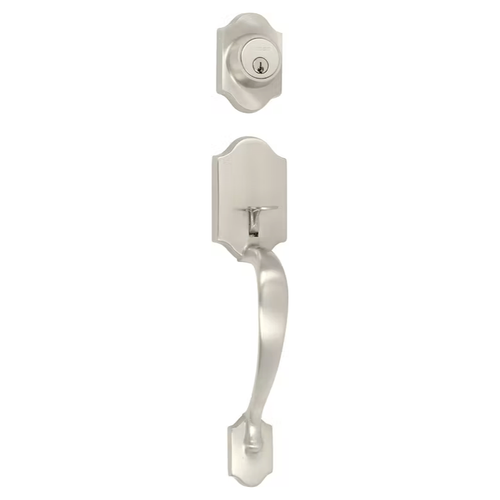

Single Cylinder Keyed Entry Handleset with Interior Knob or Lever
The entry function has a button on the inside which can lock the outside lever until a key is used outside or the lever is rotated inside. The inside latch is always free making it panic proof. The Imperial Series features classic shaped plates complementing a transitional or traditional look.
Features:
- Combination screws for wood or metal door mounting
- Works well with both classic and transitional décor
Specifications:
- Backset: Fits 2-3/8" and 2-3/4"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Faceplate: 1" x 2.25" Round Corner
- Mounting (center to center): 5.5" recommended
- Door Thickness: Standard from 1-3/8" to 1-3/4"
- Cylinder: 5 Pin KW1 (standard)
- Function: Single Cylinder
- Deadbolt Latch: 1" throw
- Handle Latch: 1/2" throw
- Strikes: 2-1/4" full lip round corner
- Category:
- Entrance Hardware
- Sub-Category:
- Entrance Handlesets
- Product Group:
- Delaney Entrance Handlesets
- Model:
- Wicklow
- Function:
- Single Cylinder
- Function Description:
- Handleset with single cylinder deadbolt.
- Grade:
- Grade 3
- Finish:
- Satin Nickel (US15)
- Knob/Lever:
- Selectable
- Trim:
- Selectable
- Knob/Lever Style:
- Selectable
- Keyed:
- Yes
- Cylinder:
- KW1 5-Pin
- Backset:
- 2-3/8" and 2-3/4"
- Deadbolt Cross Bore:
- 2-1/8"
- Handleset Cross Bore:
- 2-1/8"
- Edge Bore:
- 1"
- Mounting (center to center):
- 5-1/2"
- Door Thickness:
- 1-3/8" to 1-3/4"
- Latch Faceplate:
- 1" x 2-1/4"
- Handle Latch:
- 2-3/8" and 2-3/4" adjustable (9074)
- Handle Latch Throw:
- 1/2"
- Handle Strike:
- 2-1/4" Full lip round corner (9103)
- Deadbolt:
- 2-3/8" and 2-3/4" adjustable (9092)
- Deadbolt Throw:
- 1"
- Deadbolt Strike:
- 1-1/8" x 2-3/4" Rd & Sq corner (9111 & 9117)
- Door Handing:
- Required for interior levers
- Fasteners:
- Combination wood and metal screws and 3" security screws
- Case Quantity:
- 10 Pcs
- Case Weight:
- 33 Lbs.
