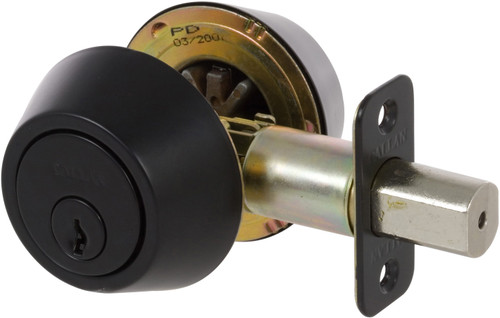

Double Cylinder Deadbolt, Black (US19)

$34.00
(No reviews yet) Write a Review
SKU:
KA2104
Adding to cart… The item has been added

double-cylinder-deadbolt Double Cylinder Function: Double cylinder deadbolts are keyed on both sides of the door and are only locked and unlocked via a key. Often times they are used on doors where glass is near the door that could be easily broken and the thumbturn on a standard single cylinder lock would be accessible. Caution: Double Cylinder locks can pose a safety hazard in times of emergency due to requiring a key to unlock. Please check local codes before installing.



Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Features:

  • Meets BHMA security grade 3 requirements
  • Made of durable zinc
  • Fully reversible handing for left or right handed applications
  • Designed for an easy one person installation
  • Comes standard with a round corner latch faceplate and 1" throw
  • Includes a limited lifetime warranty on mechanical parts and a five year warranty on finish

Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Handing: Reversible Left or Right
  • Diameter: 2-1/2"
  • Projection: 15/16"
  • Latch Faceplate: Round Corner
  • Cylinder: 5 Pin KW1
  • Concealed Screws: No
  • Material: Zinc

Technical Specification Download

Category:
Entrance Hardware
Sub-Category:
Deadbolts
Product Group:
Double Cylinder Deadbolts
Model:
210S
Function:
Double Cylinder
Function Description:
Deadbolt thrown or retracted by key on either side. Bolt automatically deadlocks when full thrown.
Grade:
Grade 3
Finish:
Black (US19)
Trim:
-
Keyed:
Yes
Cylinder:
Selectable
Backset:
2-3/8" to 2-3/4"
Cross Bore:
2-1/8"
Edge Bore:
1"
Latch Face:
1" x 2-1/4"
Door Thickness:
1-3/8" x 1-3/4"
Latch:
-
Deadbolt Throw:
-
Strike:
-
Faceplate:
-
Fasteners:
Combination wood/metal screws.
Case Quantity:
-
Case Weight:
-
